RAPID PROTOTYPING - 3D PRINTING – METAL & PLASTIC

We offer two types of 3D printing, metal & plastic to convert your parts into the material you desire.

Need a replacement part or a working prototype fast?

3D Printing Options:

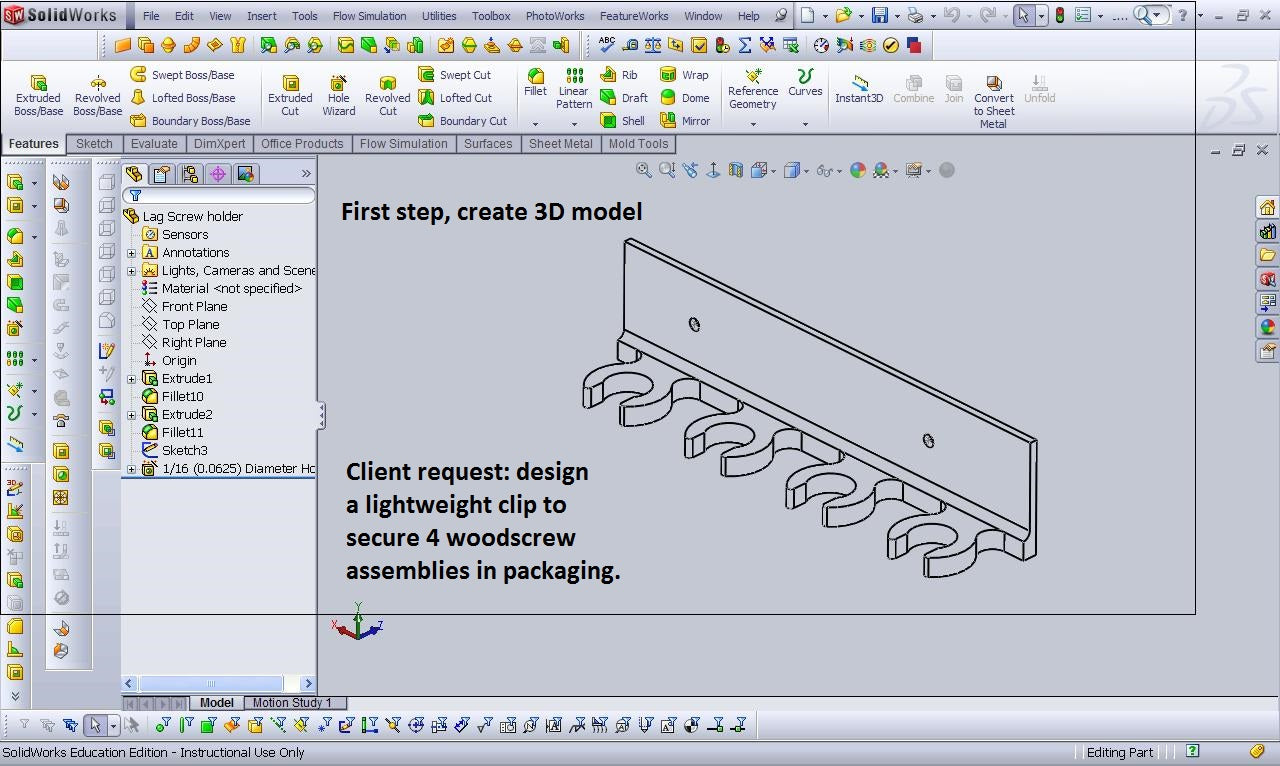

• Provide us with your 3D CAD model and we will 3D print to your specifications.

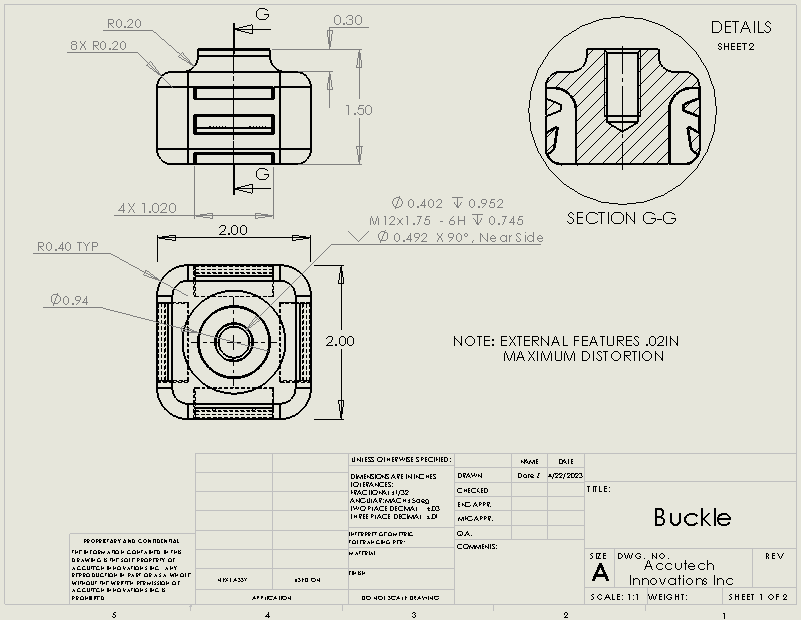

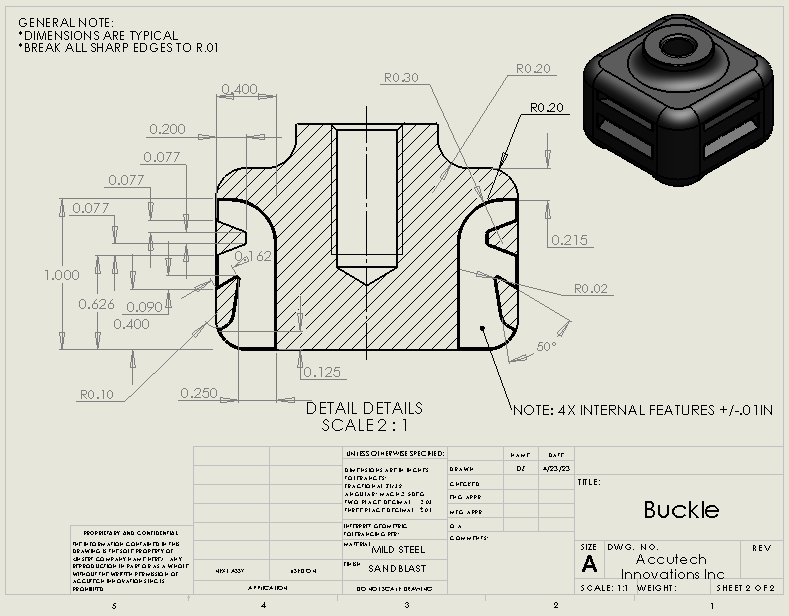

• Provide us with a 2D drawing, we will build your 3D CAD model & 3D print to your specifications.

• We can 3D scan it, reverse engineer it & print it in the material of your choice.

• Precision CNC machining as required.

• File conversion also provided.

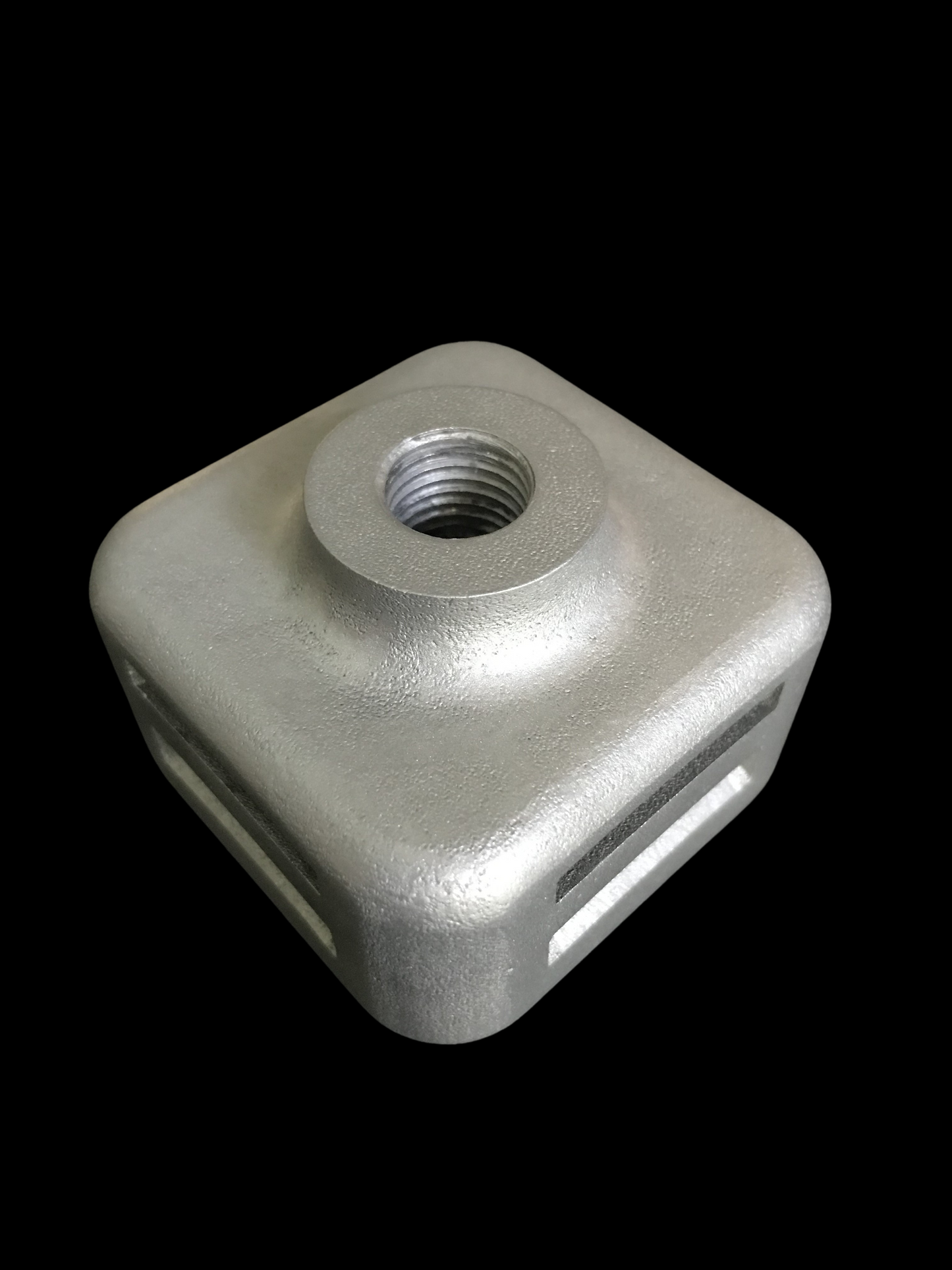

3D Metal Printing - Direct Metal Laser Sintering (DMLS)

uses a laser system that draws onto a thin layer of atomized metal powder, welding the powder into fully dense metal parts.

Materials: Most alloy steels including stainless steel

3D Metal Printer Build Capacity: 900mm x 900mm x 900mm

Other services: 3D Scanning to within .02mm. Once we have scanned your part we will reverse engineer to duplicate part in the material of your choice.

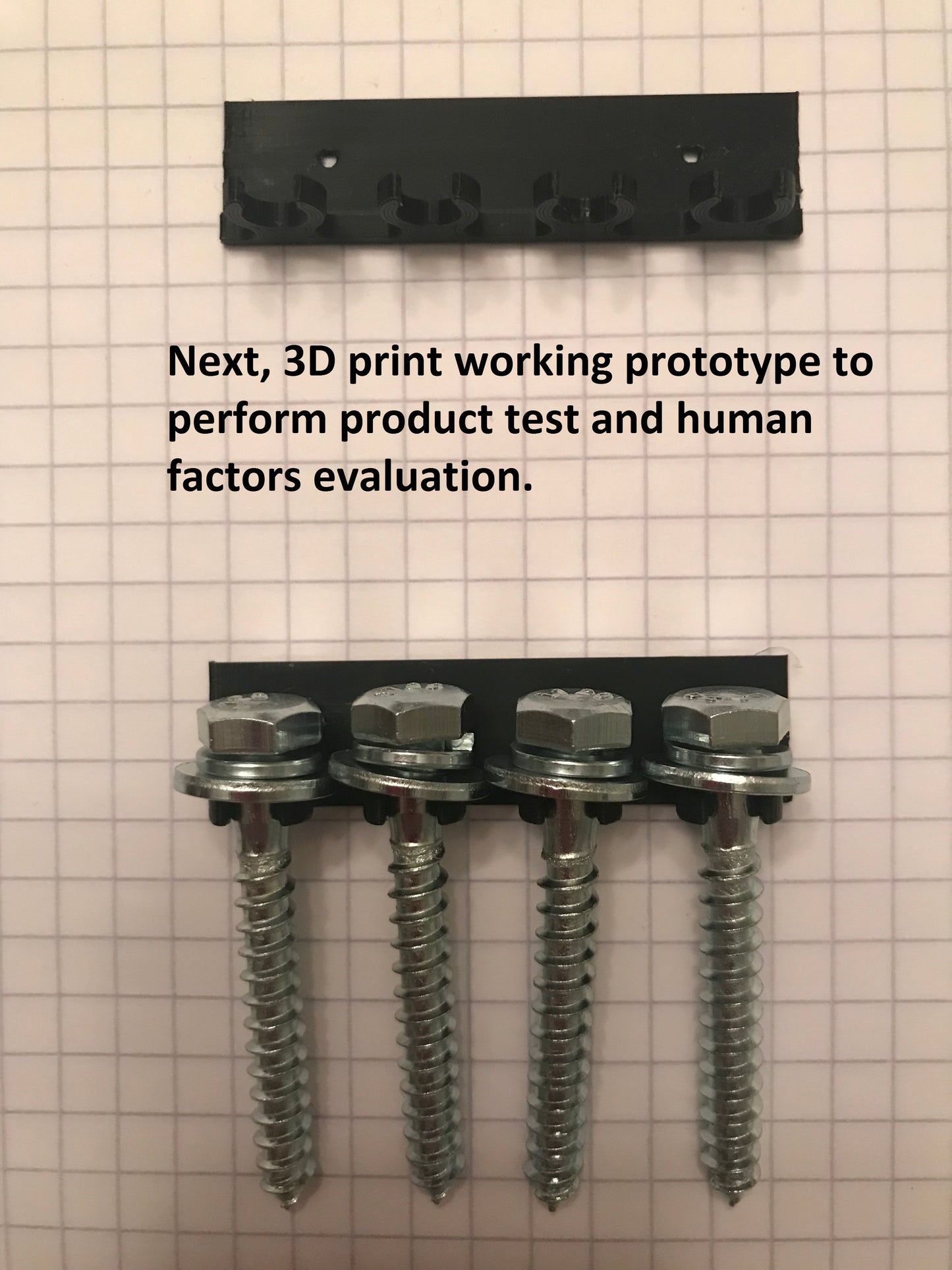

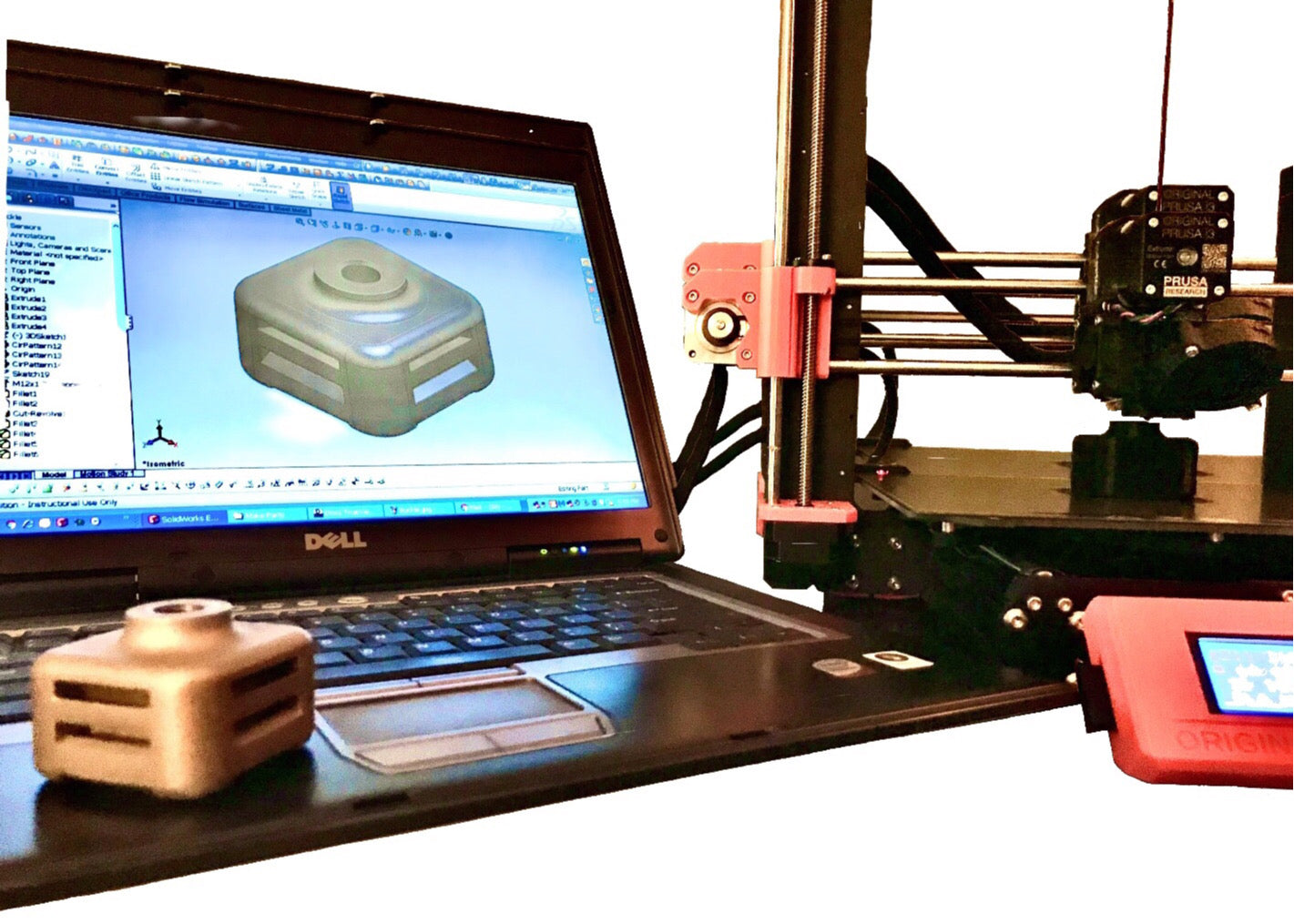

3D Plastic Printing - Fused Deposition Modeling (FDM)

applies layers of filaments to a flat printing bed using a heated nozzle or extruder.

Materials: PLA, PETG, ASA/ABS, PC (Polycarbonate), PVB, PA (Nylon), Flex, Composites

3D Plastic Printer Build Capacity: 900mm x 900mm x 900mm

*Email us for a quote.
